Introducing Bitcoin nodes' boostrap process and its protocol

Introduction

Open Image in New Tab

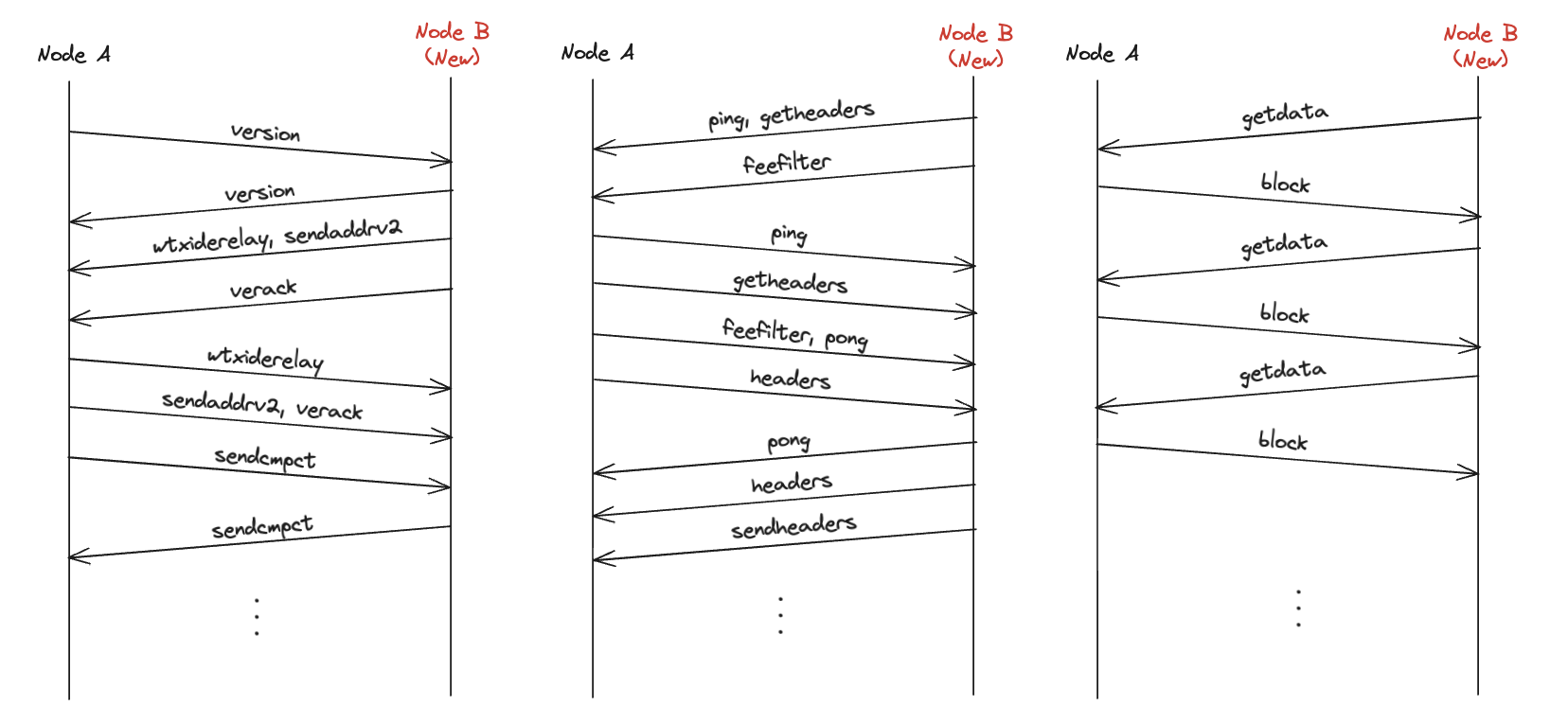

During my undergraduate internship in the KAIST NetS&P lab, I needed to find out how Bitcoin nodes communicate when joining a distributed network for the first time. Specifically, I wanted to understand what information is exchanged between nodes and known hosts or seed nodes during this initial connection. To investigate this, I utilized Wireshark to capture packets and analyze the communication process. And find out that the handshake required for Bitcoin nodes involves a streamlined set of messages, as detailed above.

The commands and protocols exchanged during this process are critical for establishing reliable connections and data sharing. For a more in-depth understanding, I’ve referenced various Bitcoin Protocol and BEP official documentation throughout this exploration.

Bitcoin protocol

Messages

Bitcoin nodes communicate with Bitcoin protocol which follows the protocol documentation like below (which is built on top on TCP)

Messages which are bitcoin protocol have common structures like the table below +) Almost all integers are encoded in little endian. Only IP or port number are encoded big endian. All field sizes are numbers of bytes

Field Size	Description	Data type	Comments
4	magic	uint32_t	for REGTEST: 0xDAB5BFFA
12	command	char[12]	NULL padded
4	length	uint32_t	Length of payload bytes
4	checksum	uint32_t	First 4 bytes of sha256(sha256(payload))
?	payload	uchar[]	Actual data

version

Advertise its version

wtxiderelay

BIP339

• Send prior to verack
• For only protocol both 70016 or higher

Payload

Empty payload for this command

sendaddrv2

BIP155 Prefer to receive addrv2 than addr

• Must send as response to version
• and send prior to verack

verack

sent reply to version

getaddr

asking information about active peers

sendcmpct

BIP152

• Payload length is 9
• For only protocol both 70014 or higher

Payload (9bytes) = 1byte (boolean) + 8bytes

Example Payload: 0 2 0 0 0 0 0 0 If first and second bytes are

• 1 and 1 → new blocks by cmpctblock (BIP130)
• 0 and * → new blocks by inv and headers (BIP130)
• * and not 1 → not received any message

ping

confirm TCP/IP connection is valid with random nonce

pong

response to ping with nonce from ping

getheaders

requests the peer for headers message

Example Payload.

• version: 70016
• hash_count: 1
• block_locator_hashes: [GENESIS_BLOCK_HASH] In other words, starting hash
• hash_stop: 0 In other words, stop_hash. When it is set to zero, get as many blocks as possible (Max. 2000)

So, for getheaders message, it requests the opposite nodes to send block hashes starting from block_locator_hashes until hash_stop.

Payload

Field Size	Description	Data type	Comments
4	version	uint32_t	the protocol version
1+	hash count	var_int	number of block locator hash entries
32+	block locator hashes	char[32]	block locator object
32	hash_stop	char[32]	hash of the last desired block header

feefilter

Instruct peers not to send invs for transactions with fees below specific value. → due to limited memepool

• For only protocol both 70013 or higher

headers

returns block header response to getheaders message.

sendheaders

prefer to receive headers message than inv

• For only protocol both 70012 or higher
